Industrial Axial Canopy Fan SF Series – High Airflow Ventilation (300mm–500mm)

Click Here To See Instruction Manual


Powerful Industrial & Commercial Ventilation – SF Series Axial Canopy Fan
Upgrade your airflow system with the SF Series Canopy Axial Fan, designed for powerful ventilation in demanding environments. Whether you run a workshop, commercial kitchen, warehouse, or greenhouse, this fan provides exceptional airflow, low noise, and long-lasting durability.

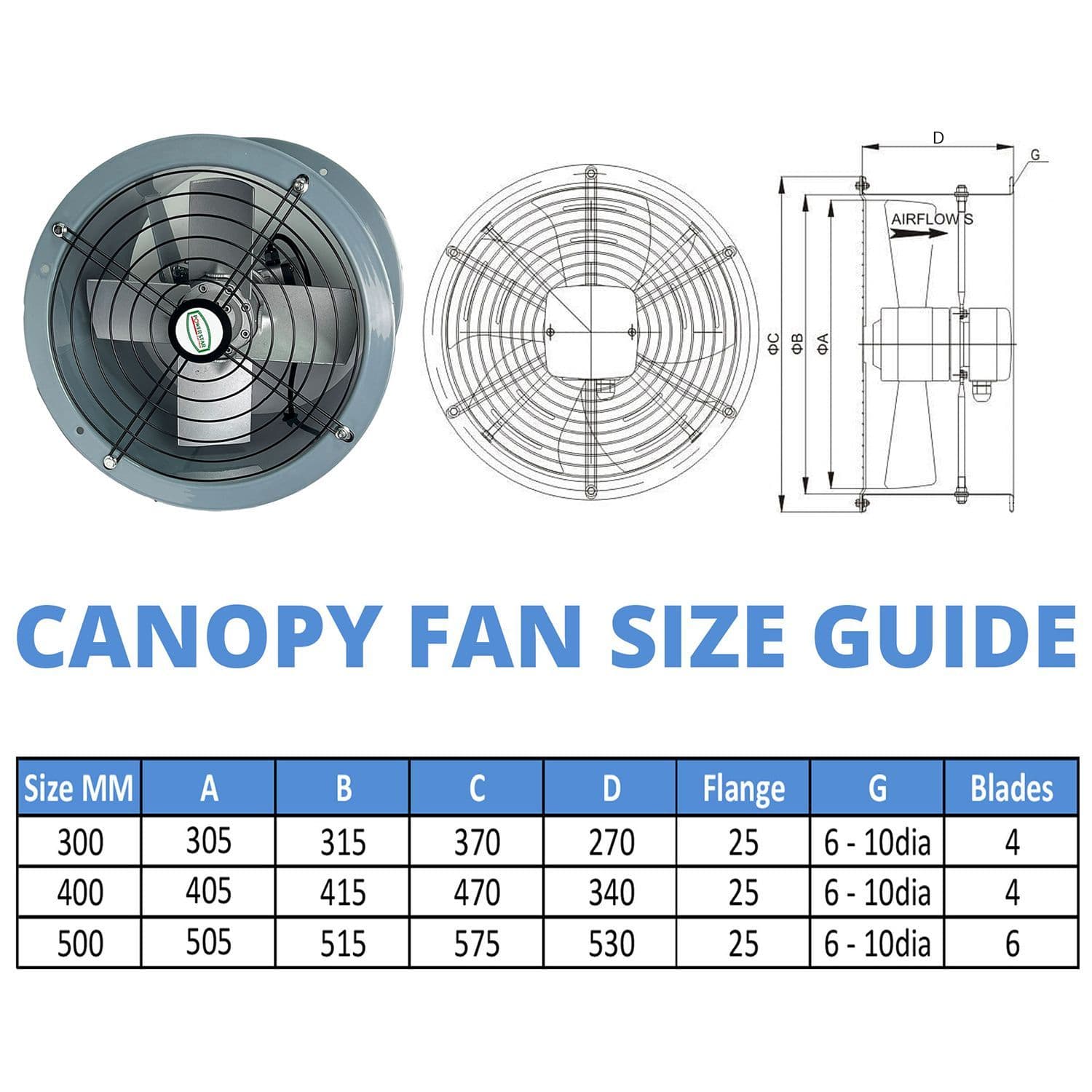

ITEM SPECIFICATION:

• Model: SF-3
• Size (mm) - 12" Inches 300mm, Air Flow- 2900 (m³/h), Speed - 2900 RPM, Wattage - 370W, Full Pressure - 191 (Pa), Noise level- 76 dB
• Model: SF-4
• Size (mm) - 16" Inches 400mm, Air Flow- 10000 (m³/h), Speed - 2900 RPM, Wattage - 1.5KW, Full Pressure - 320 (Pa), Noise level- 78 dB
• Model: SF-5
• Size (mm) - 20" Inches 500mm, Air Flow- 12000 (m³/h), Speed - 2900 RPM, Wattage - 2.2KW, Full Pressure - 396 (Pa), Noise level- 80 dB

Key Benefits:

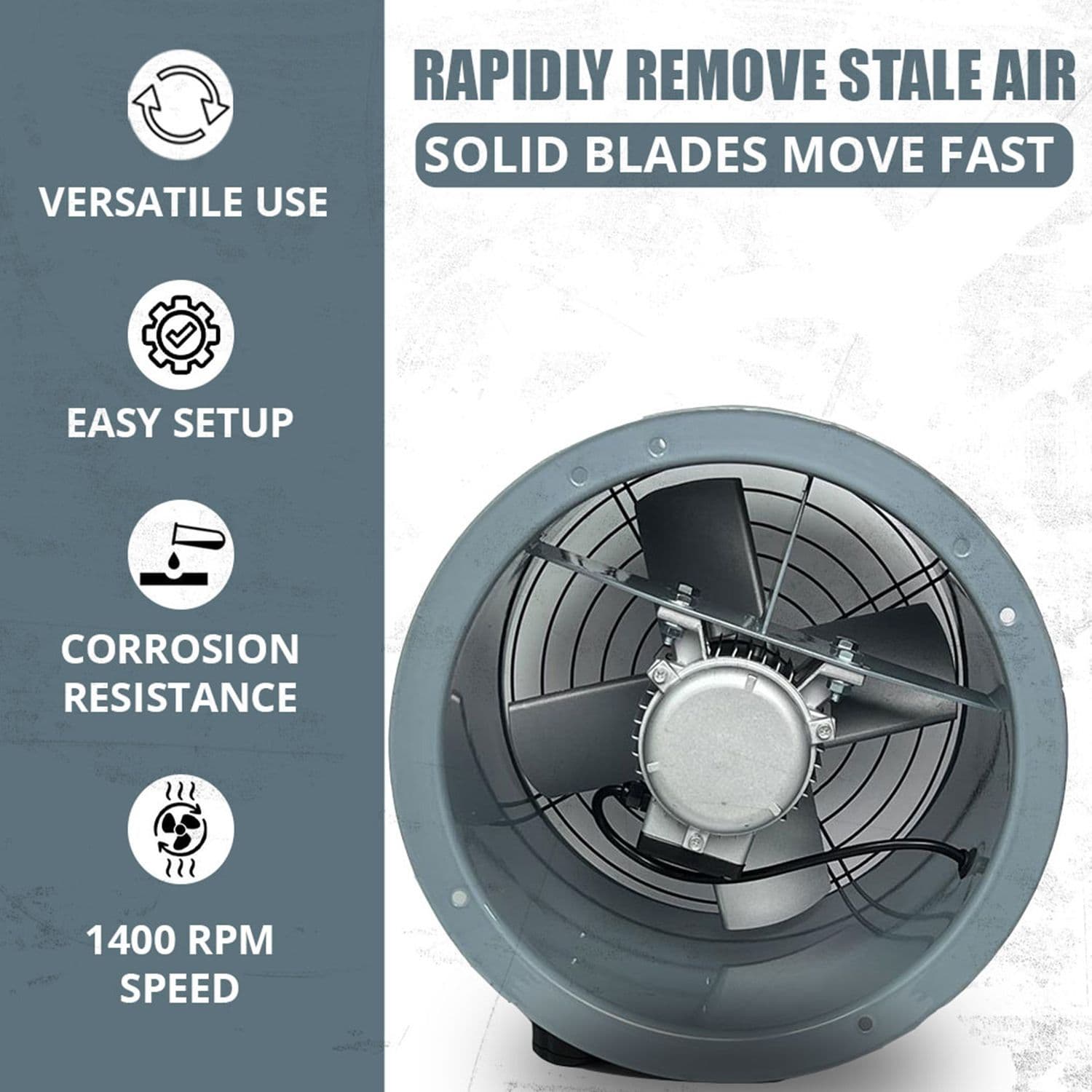

•  High Performance – Delivers strong airflow at up to 2900 RPM
•  Low Noise Operation – Minimal disruption in the workplace
•  Energy-Efficient – Copper motor for reduced energy consumption
•  Heavy-Duty Design – Metal body & powder-coated blades
•  Easy Mounting – Wall, ceiling, or duct installation
•  IP54-rated enclosure for protection against dust ingress and water splashes, ensuring reliable performance in harsh environments
• The 300mm fan model can operate with a speed controller.
• All other fan sizes run at one fixed speed.

Ideal For:

• Workshops, factories, power stations

• Commercial kitchens, parking garages

• Barns, greenhouses, HVAC systems

Includes:

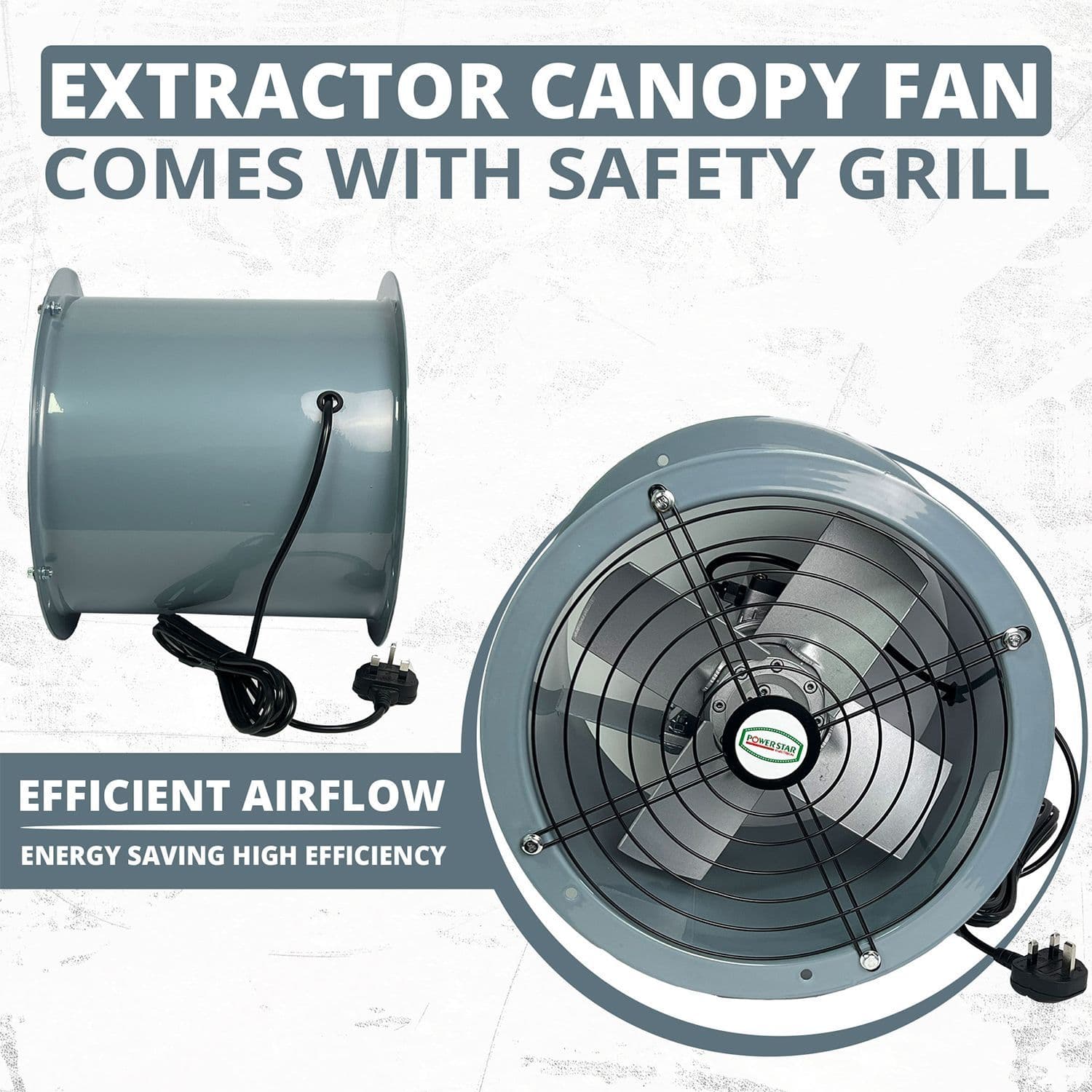

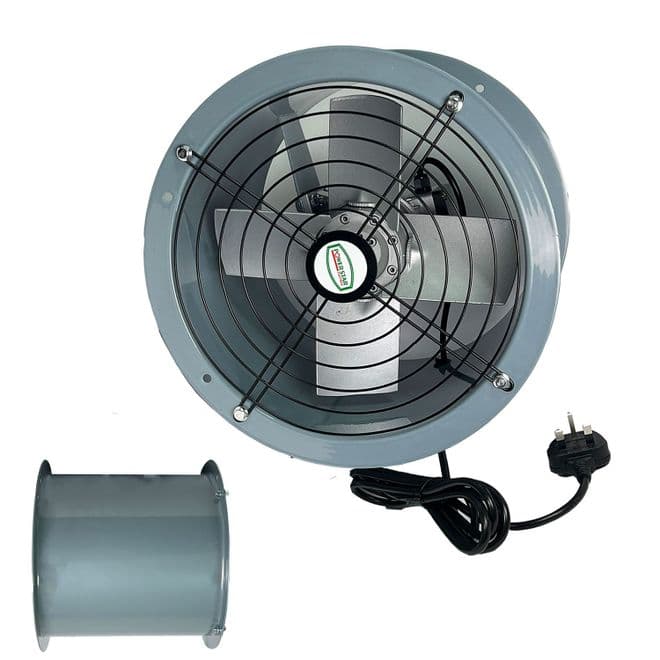

1x Axial Fan with Protective Steel Grill

Reliable, powerful, and efficient – the SF Series is built to perform where it matters most.
